【High PRECISION JAW DESIGN】 Crimper with high precision jaw ensure a tightly connection after crimping with strong work pressure. This tool has widely application in automatic electronics work.

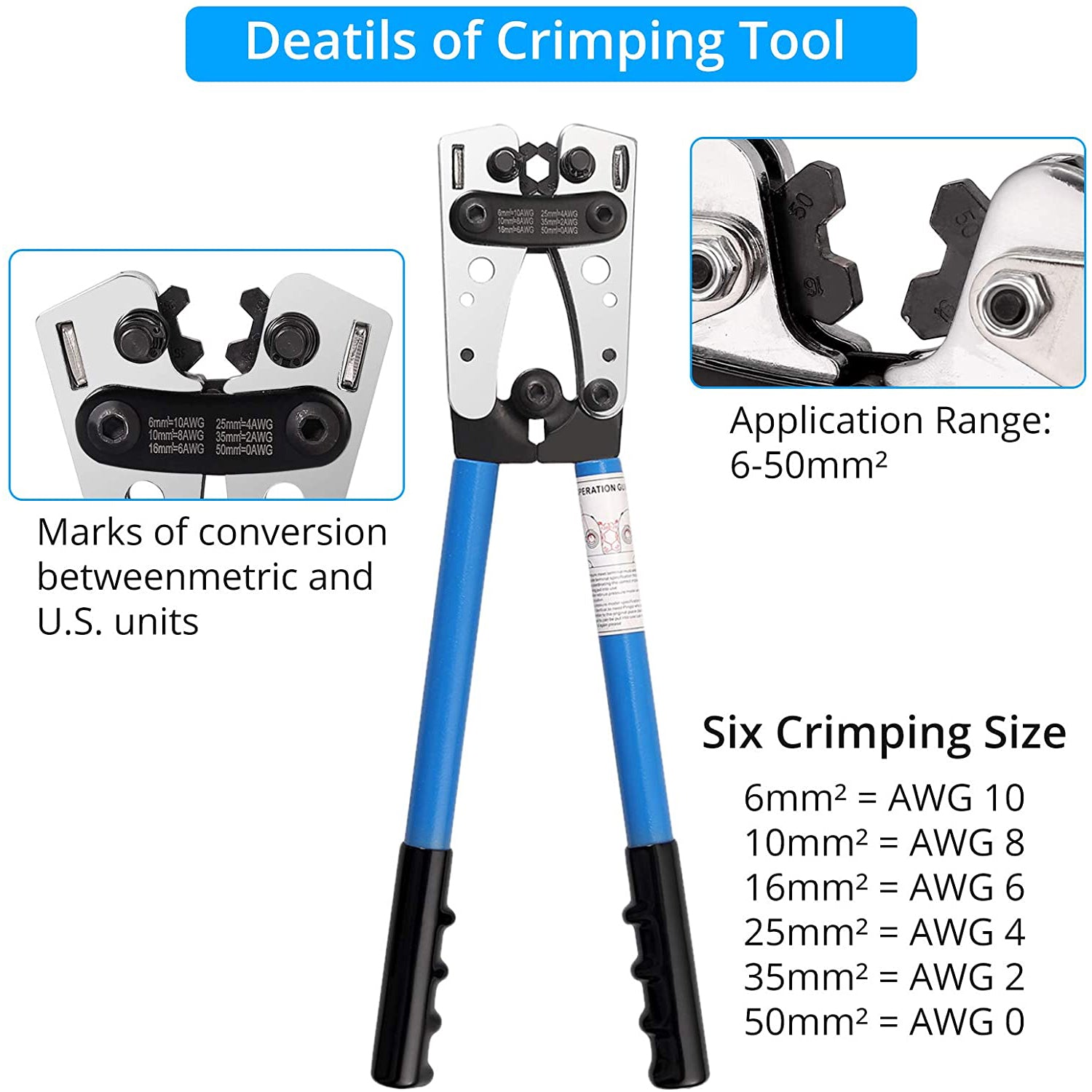

【ROTATE CRIMP DIES】The professional cable terminal crimping tool has 6mm²/10mm²16mm²/25mm²/35mm²/50mm² (Similar to AWG 8，6，4，2，0) wire size crimping, using rotating heads with a spring loaded locking pin to keep the heads in place.

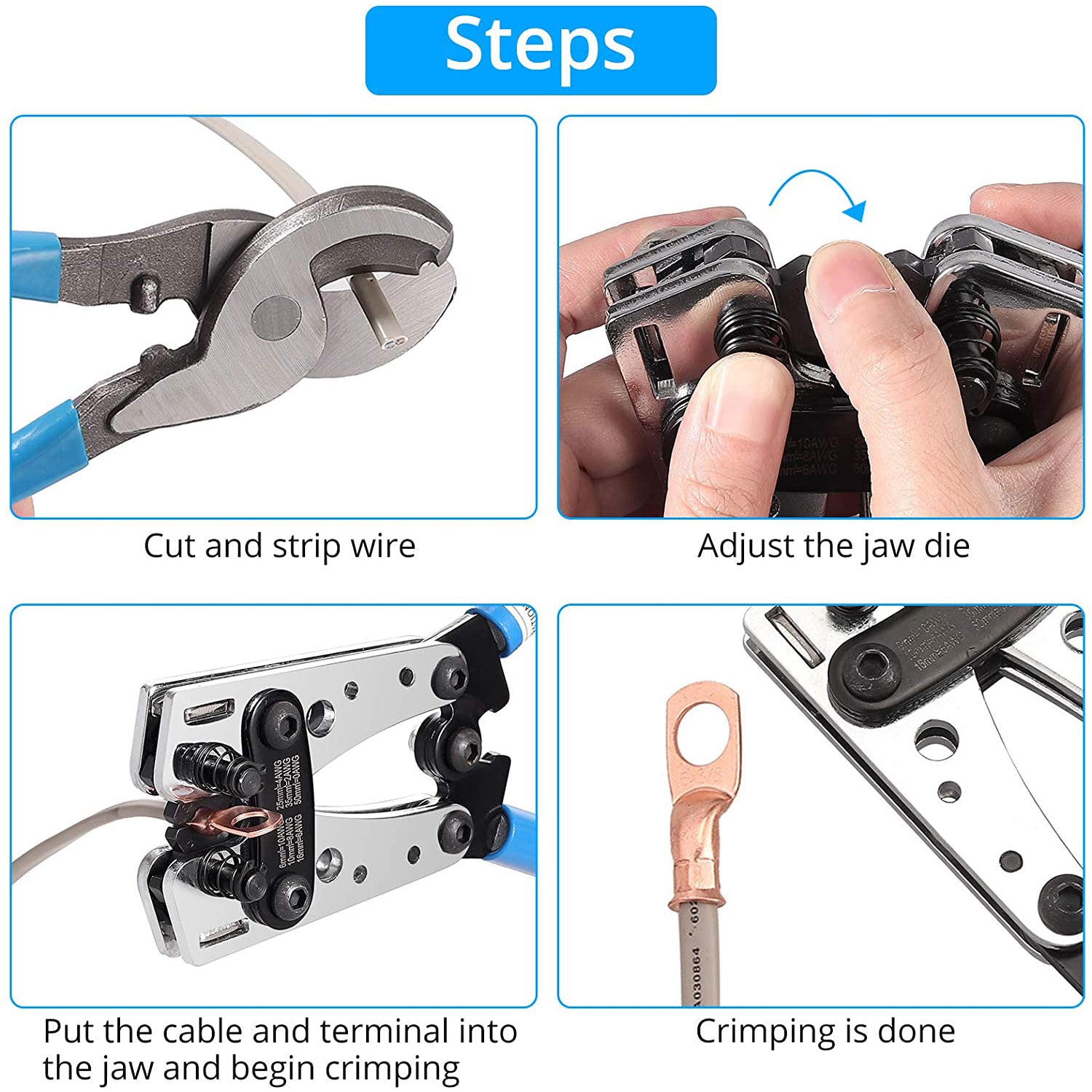

【EASY OPERATION】 Press the screw and rotate the dies to the size you need, then just take a strong pull of the ratcheting wire terminal crimper then produce a good crimp on cable lugs.

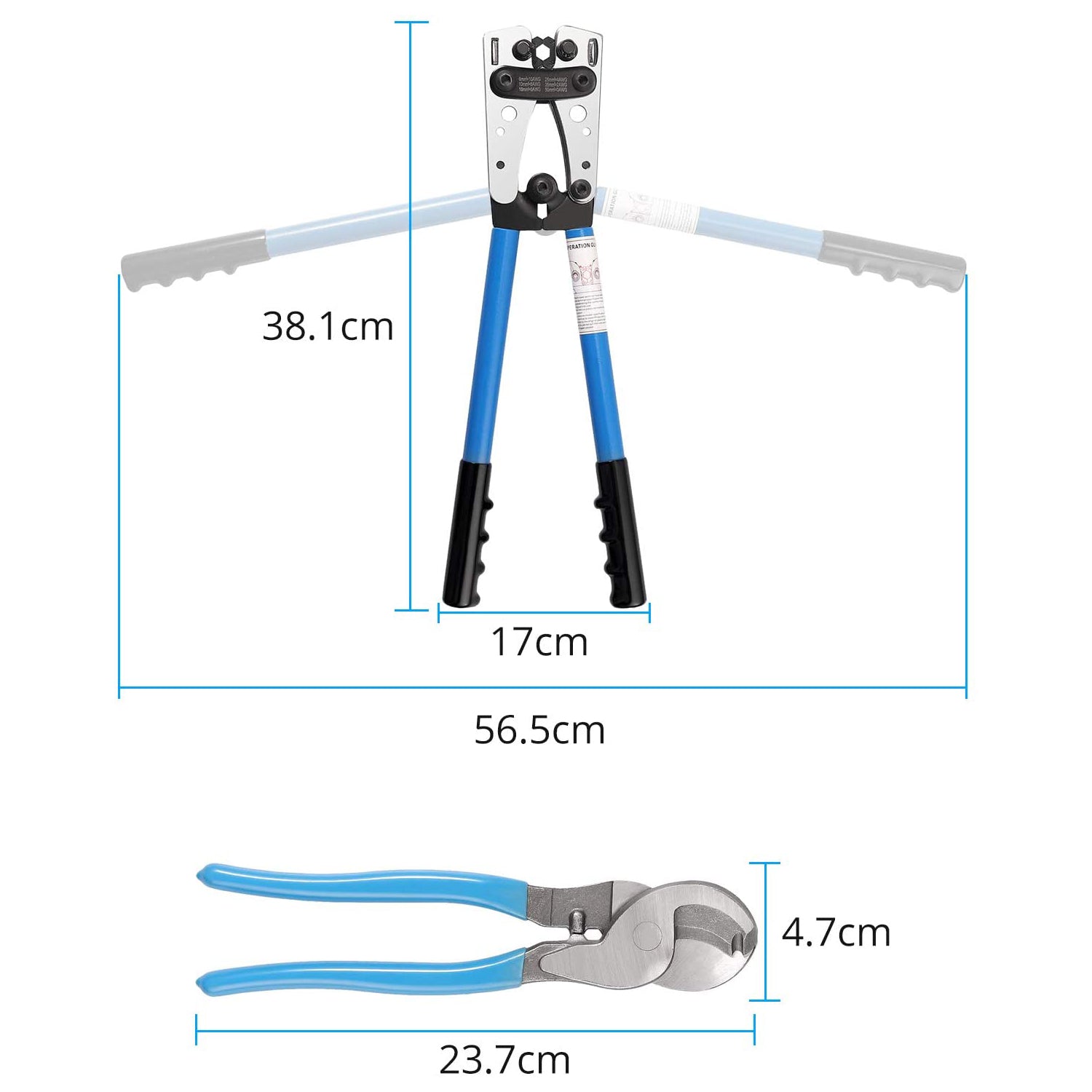

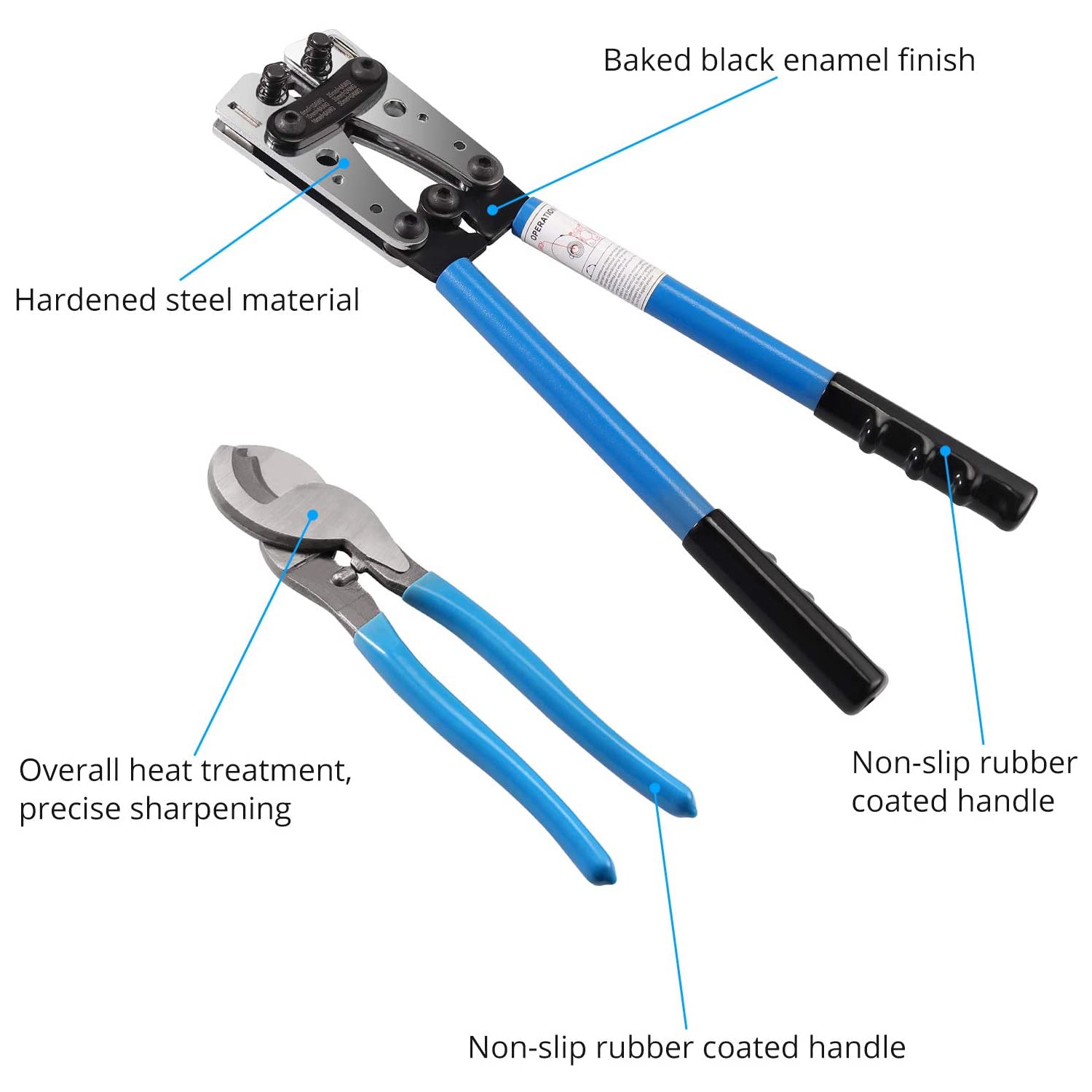

【ERGONOMIC DESIGN】The handle of the wire crimper is long for 10 inch and wrapped with soft rubber, ergonomic lever structure design can increase friction and help you use less effort when crimping.

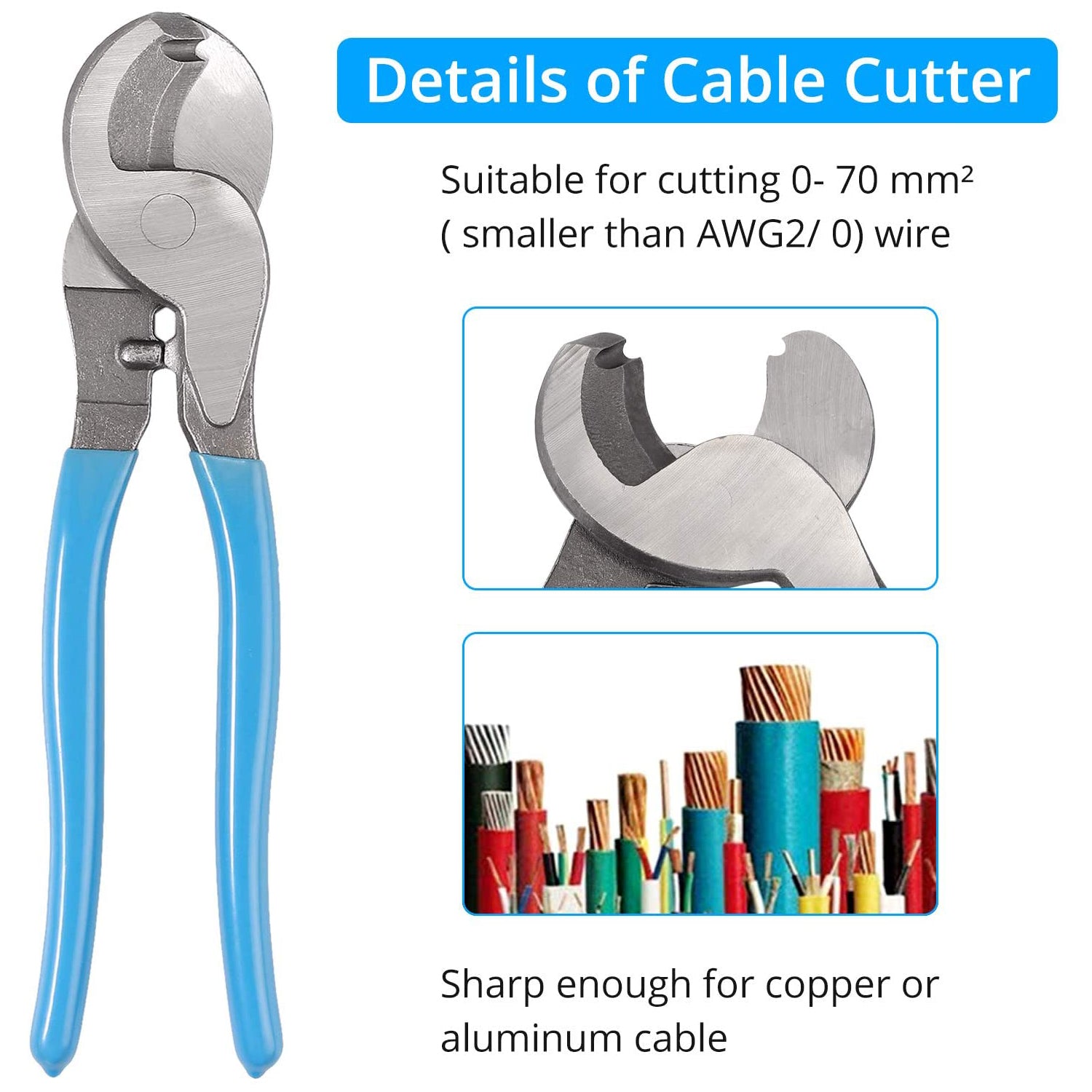

【WIRE CUTTER INCLUDED】 Adopt overall heat treatment, sharpened precisely, the cutting edge is sharp enough to cut hard copper or aluminum cable, suitable for cutting 0- 70 mm² ( smaller than AWG2/ 0) wire.
【60PCS AWG 6 4 2 COPPER WIRE LUGS WITH HEAT SHRINK SET】The crimper set contains 30pcs AWG 6 4 2 heavy duty battery cable closed end tubular ring terminals connectors with 30pcs 3:1 heat shrink tubing, save your time and money to buy other connetors.
Crimping Capacity : 6-50mm²
AWG : 10-0AWG
6mm² = AWG 10
10mm² = AWG 8
16mm² = AWG 6
25mm² = AWG 4
35mm² = AWG 2
50mm² = AWG 0

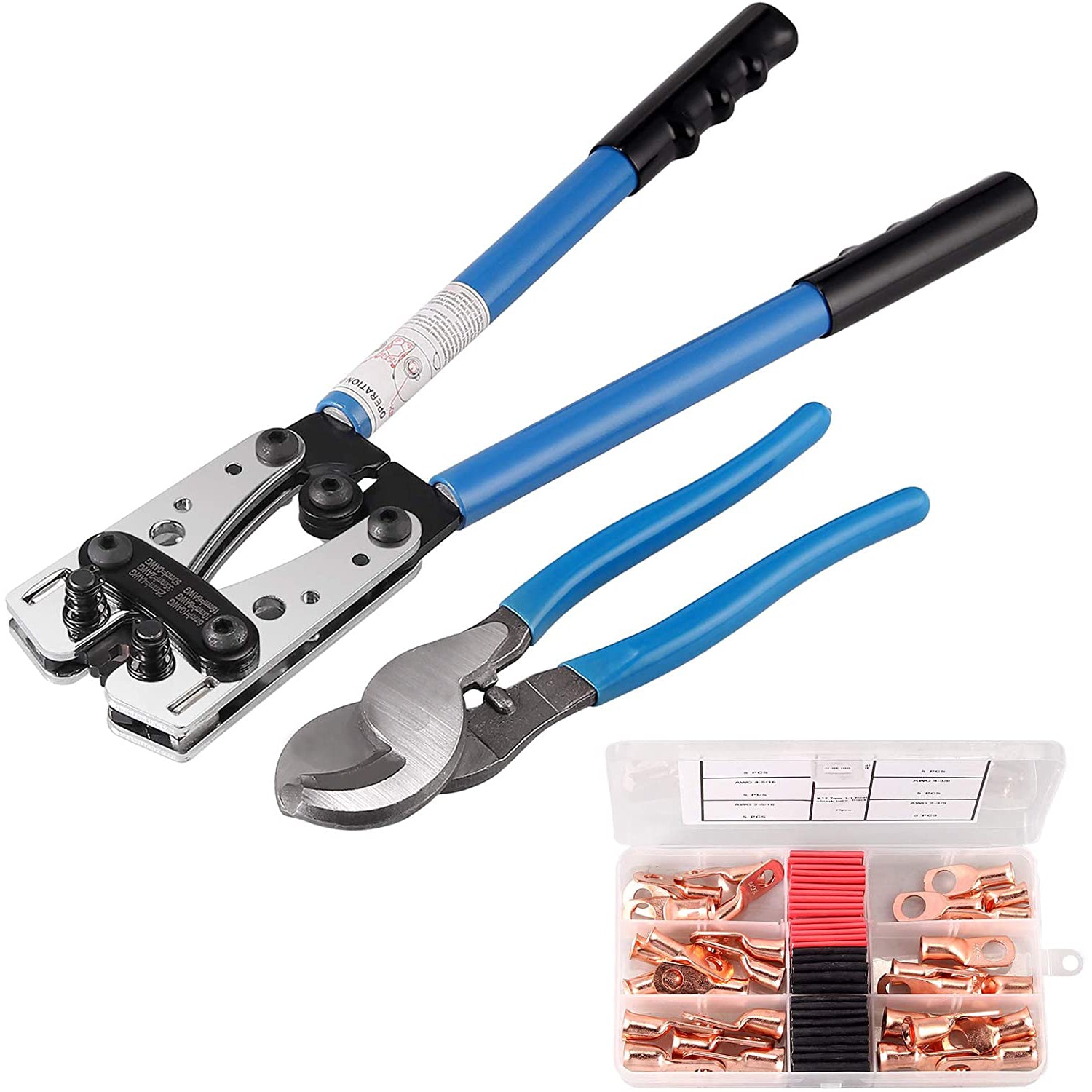

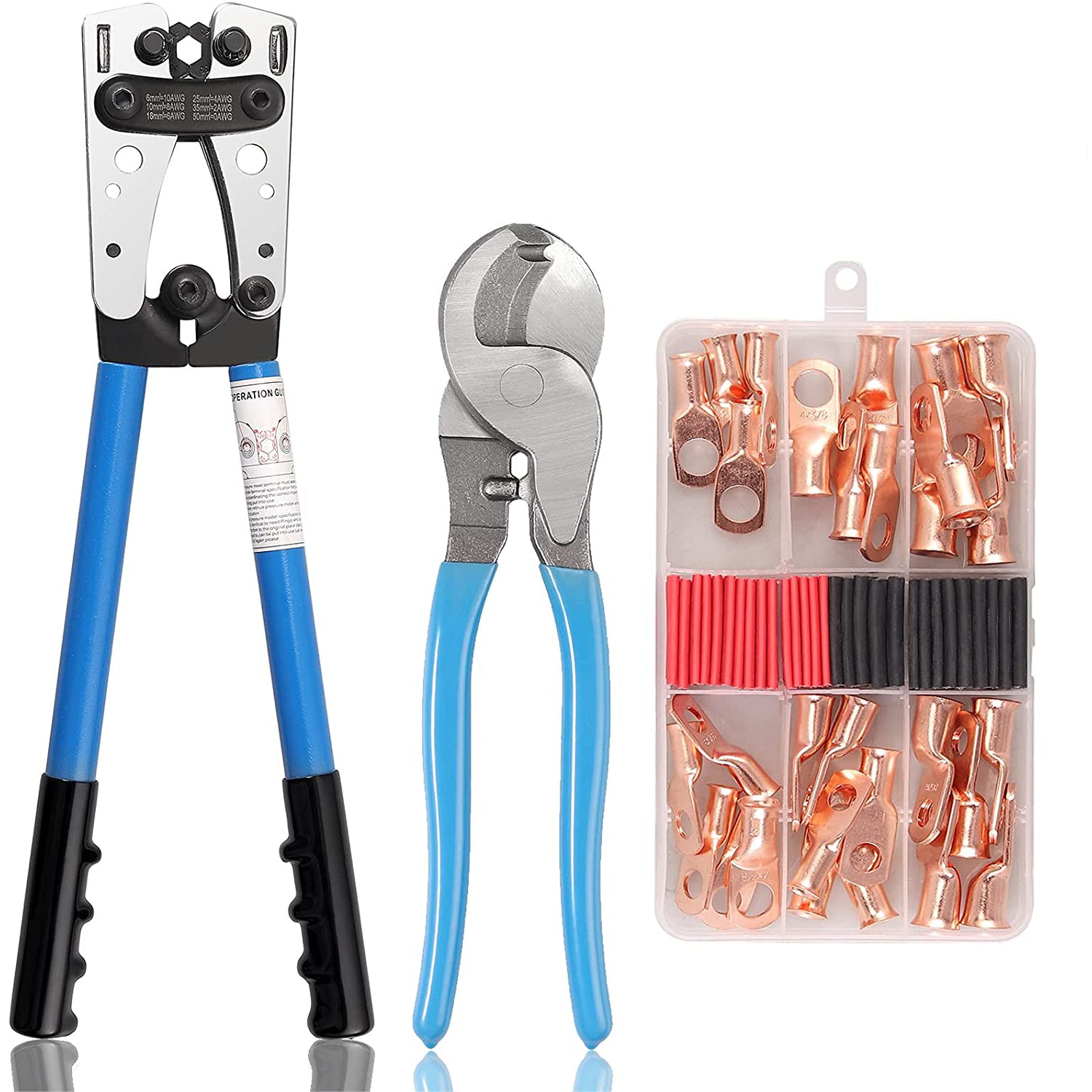

1 x Battery Cable Lug Crimper Tool
1 x Cable Cutter

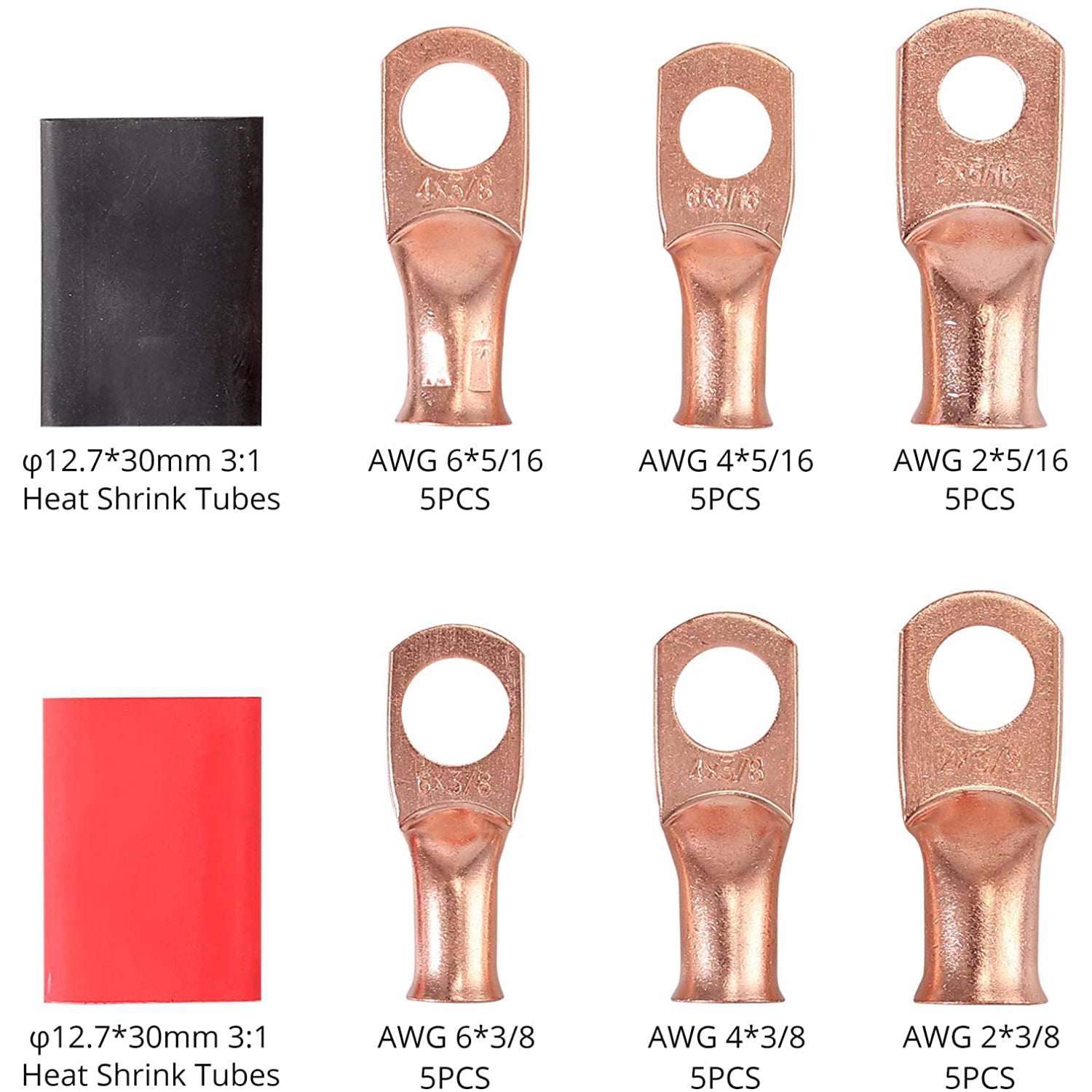

5Pcs x 6AWG-5/16 Terminals
5Pcs x 6AWG-3/8 Terminals
5Pcs x 4AWG-5/16 Terminals
5Pcs x 4AWG-3/8 Terminals
5Pcs x 2AWG-5/16 Terminals
5Pcs x 2AWG-3/8 Terminals
15pcs x φ12.7*30mm 3:1Heat Shrink Tubes (Black)
15pcs x φ12.7*30mm 3:1Heat Shrink Tubes (Red)
