Specification:

Material: PVC

Wire: GB466-86,Cu-1(99.95%)

OD: 3.5mm

Wire length: 1000mm

Rod Length: 117mm

Copper core: 35*0.1

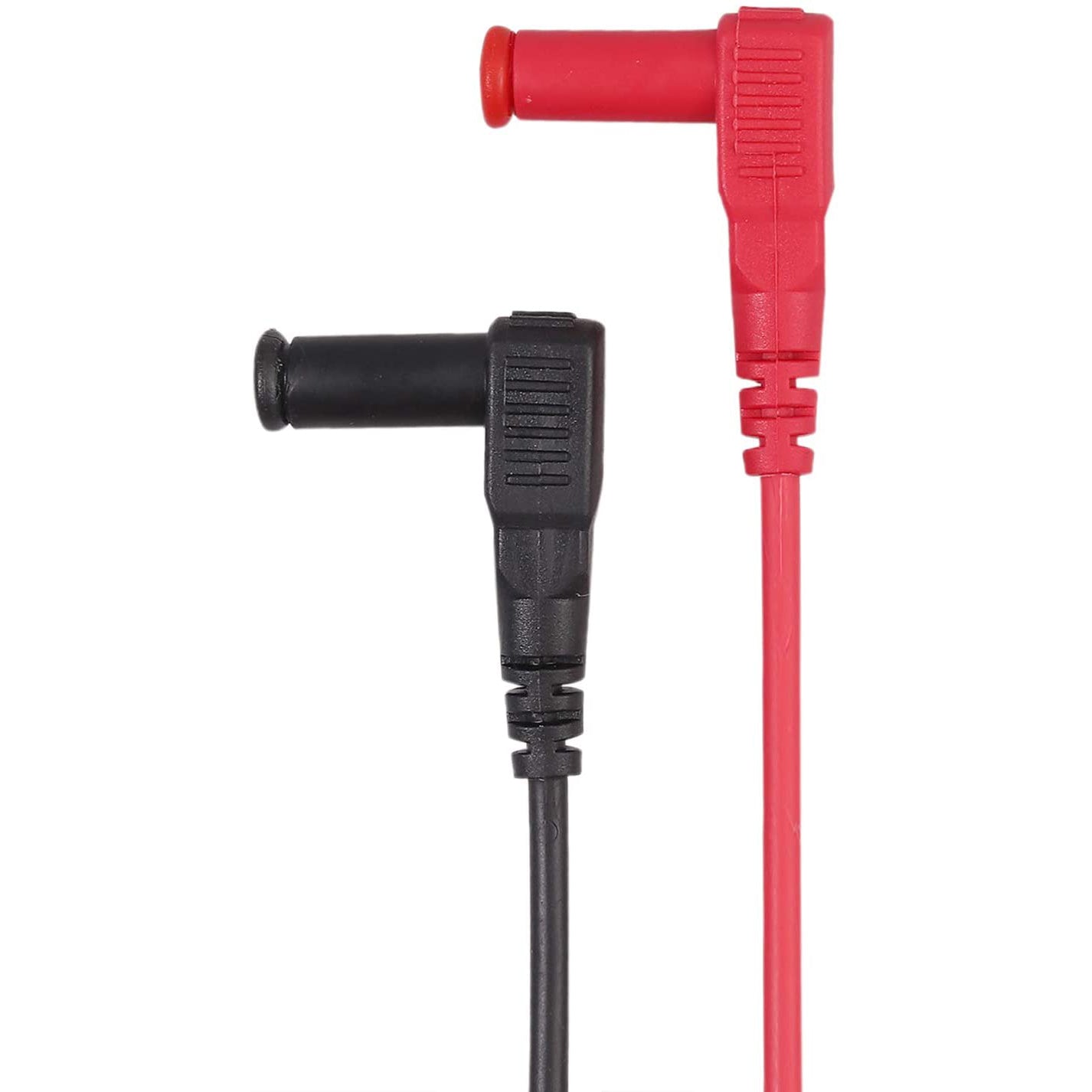

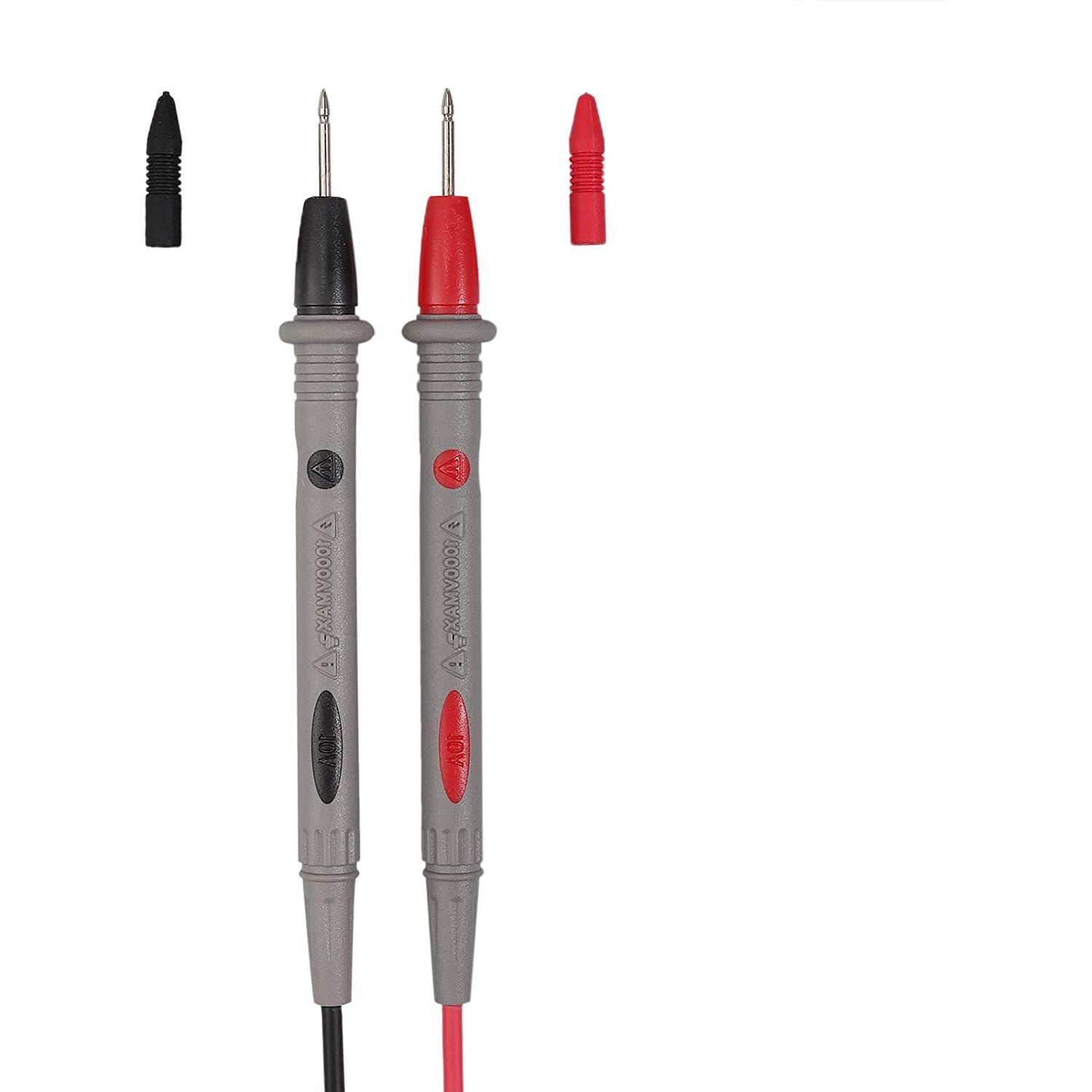

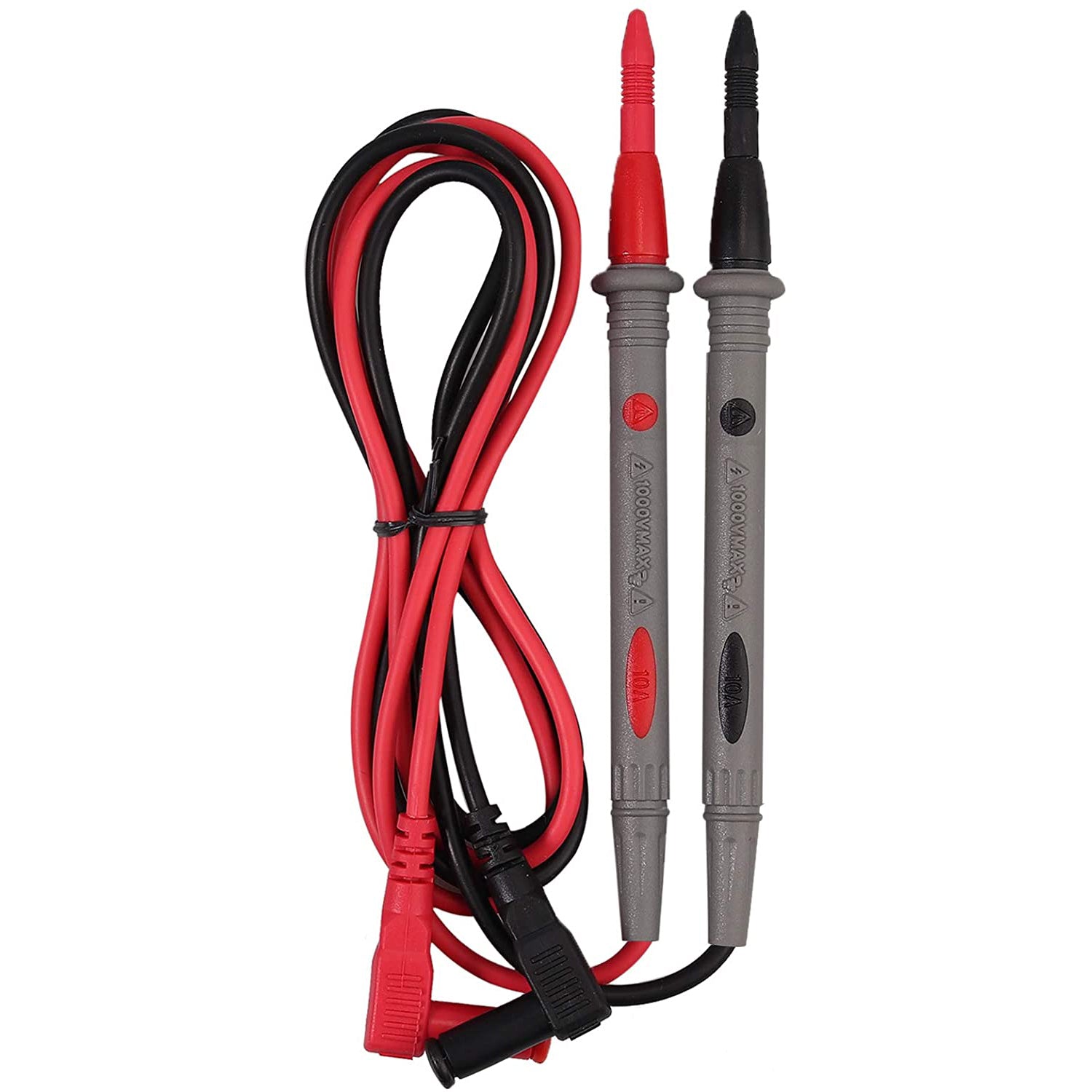

Test Leads: CAT II 1000V, 10A

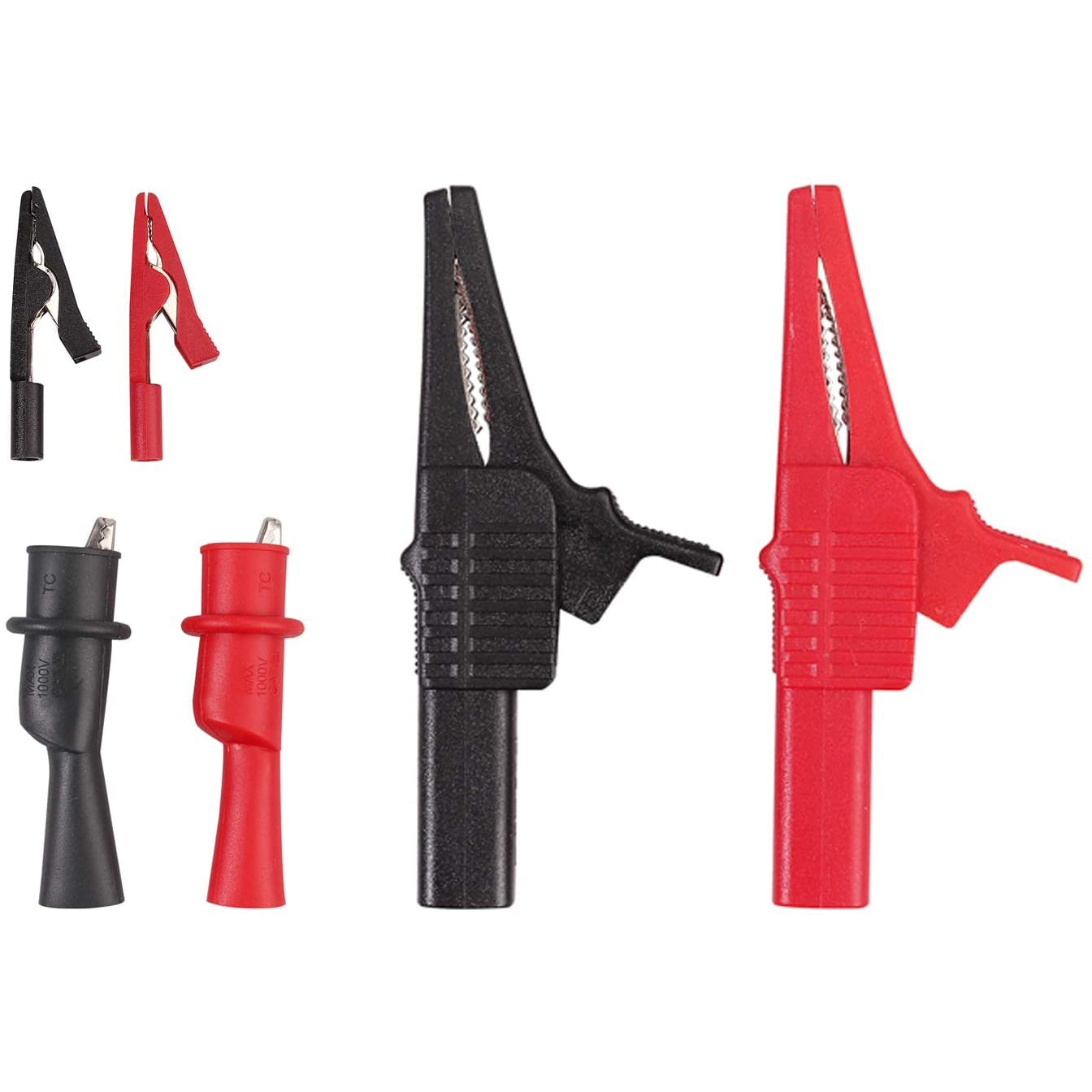

Mini alligator Clips: 60V, 10A, Max Jaw opening is 8.5 mm.

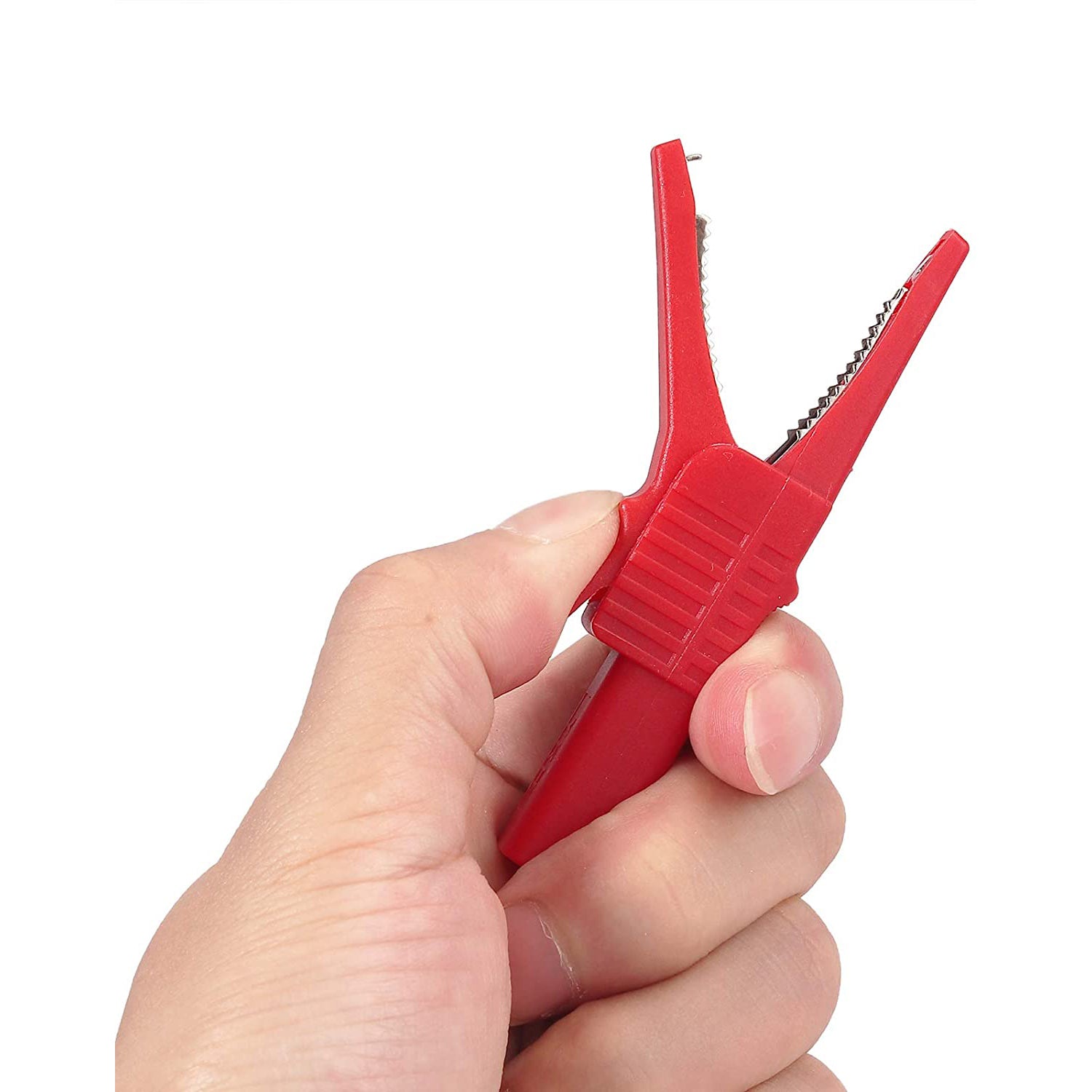

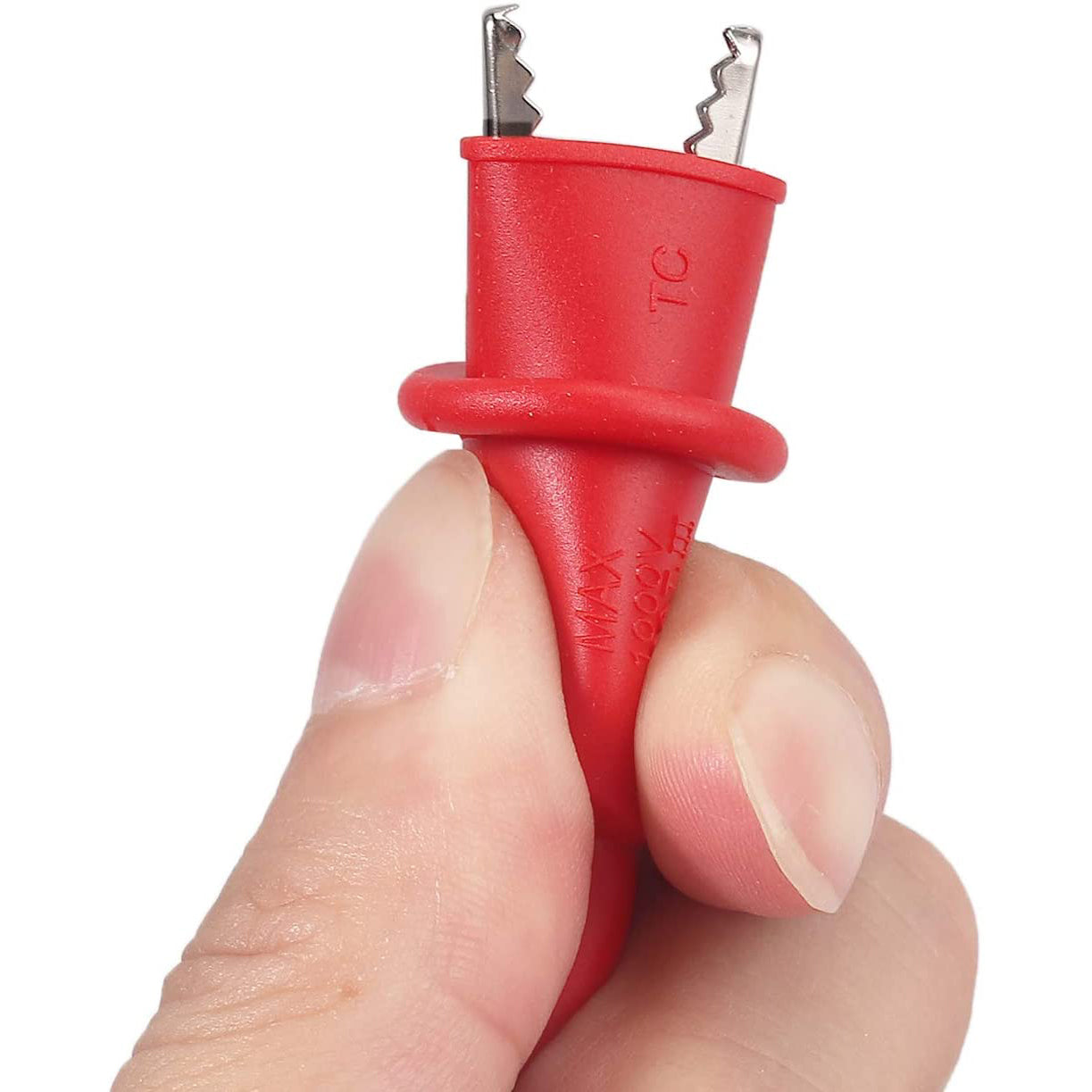

Safety alligator clip: 1000V, 10A, jaw opening is 8.5mm, nickel plated brass clip, glass filled nylon housing (Safety alligator clip dimensions: 49mm x 10mm x 7mm).

Crocodile clamp large set: 1000V, 32A; Maximum jaw opening is 30mm

Note:

1.Insulation Safety Alligator Clips and Mini Alligator Clips can be connected with test probes.

2.The large alligator clamps are for DIY. They do not support connection directly with the test probes, need to be welded.

3.The large alligator clamps can connect with banana plug, but a connector is needed to be a bridge so that clamps can work.

4.The large alligator clamps are mainly designed for connecting multimeter. But a Banana to Banana Plug Test Wire is needed to be a bridge. That means users should have a banana to banana plug test wire so that the large alligator clamps can work. (not include banana to banana plug test lead)

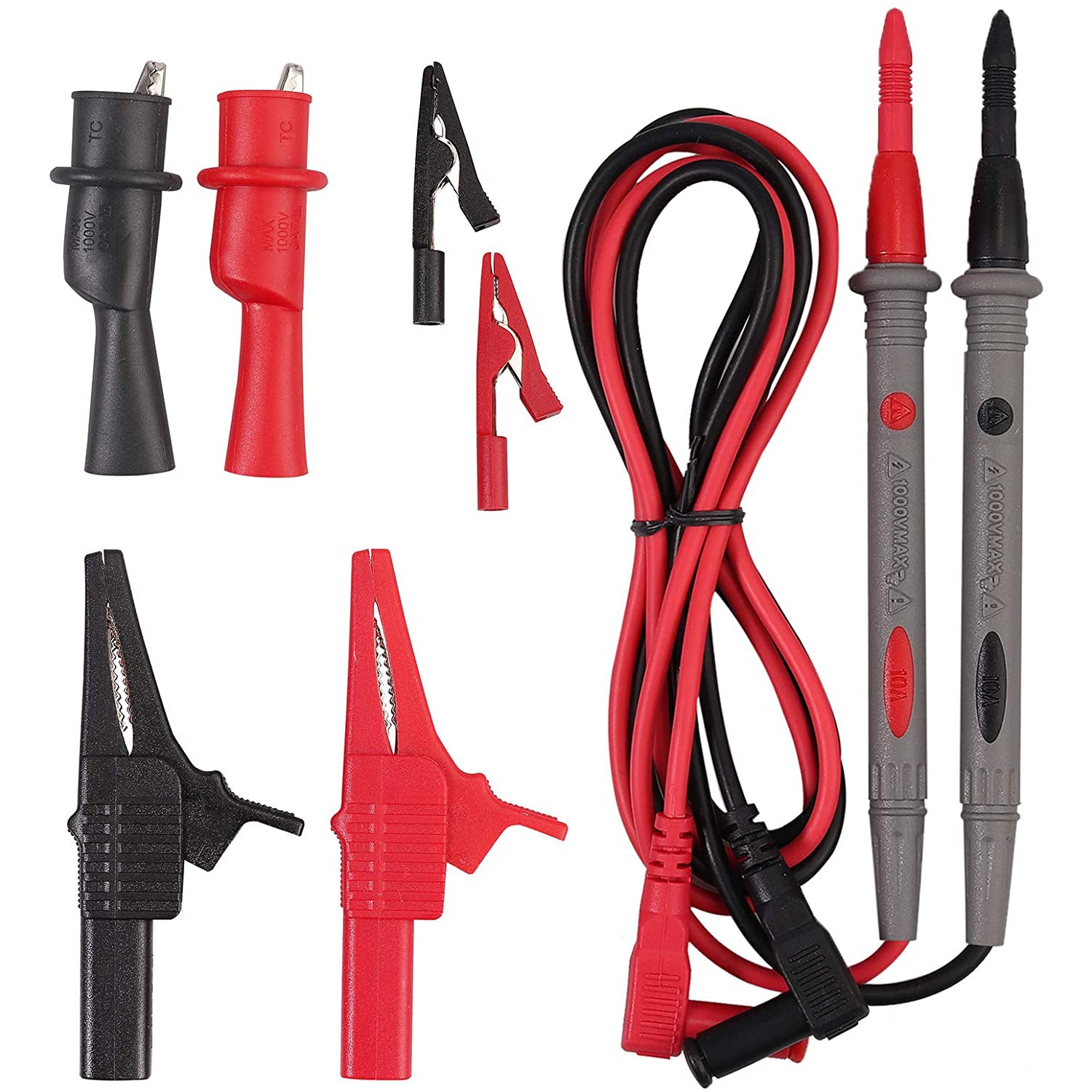

Package included:

2* Test Leads

2*Mini Alligator Clips

2*Safety Alligator Clips

2* Large Alligator Clamps
