PRODUCT DESCRIPTION
Product description
Overview:
Wire Ferrule Crimp Tool is a newly designed crimping tool for wire ferrules. It is ideal for crimping insulated and non-insulated wire ferrules.
The Crimp Too provides high crimping forces with low hand gripping power leading to less fatigue when used repeatedly.

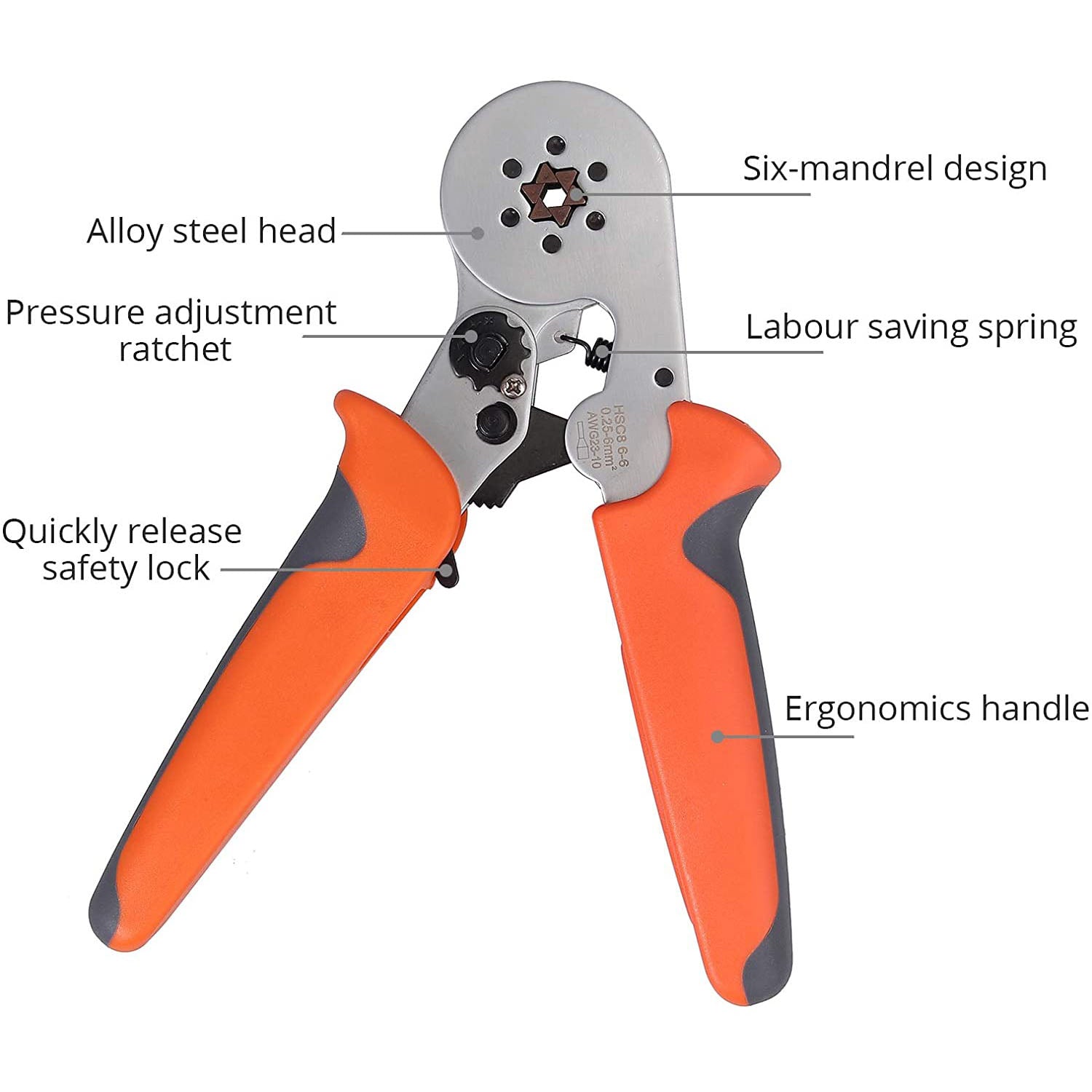

Features:
1. Ergonomic handle design provides improved gripping power.
2. Adjustable ratchet and lever action construction reduces fatigue degree.
3. Special six-mandrel crimping style for square crimp.
4. High quality crimping standard ensures repeatable crimping action.
5. Quick release safety lock.
Specification:
Name :Crimping Tool/Ferrule Crimp Tool
Plier Material: High-carbon steel
Handle Material: Nylon
Color: Orange
Body: HSC8 6-6
Range of Application: Wire-end ferrules
Capacity mm²: 0.25-6mm²
AWG: 23-10

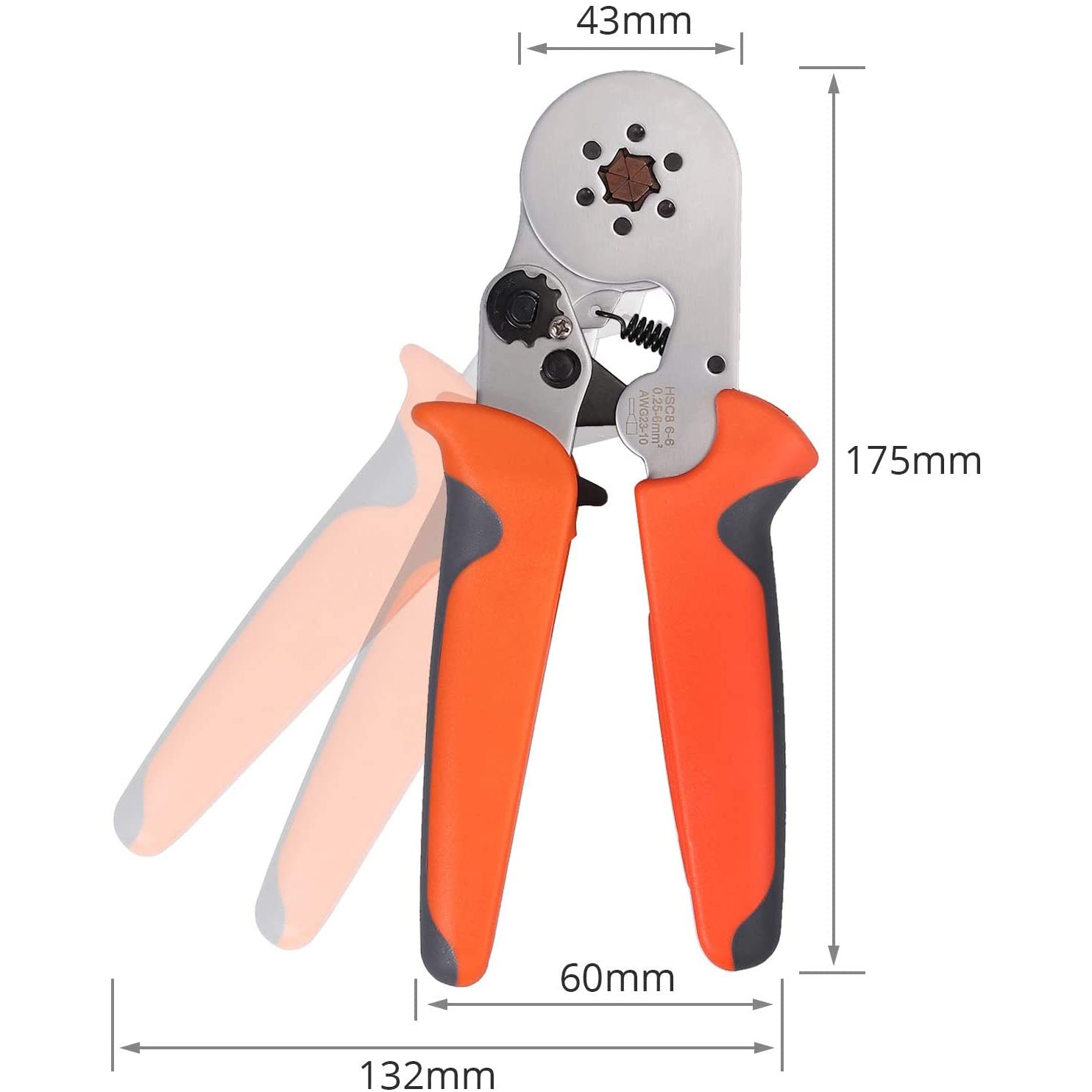

Length: 175mm (6.9'') *70mm (2.7'')
Weight: 380g/13.40oz

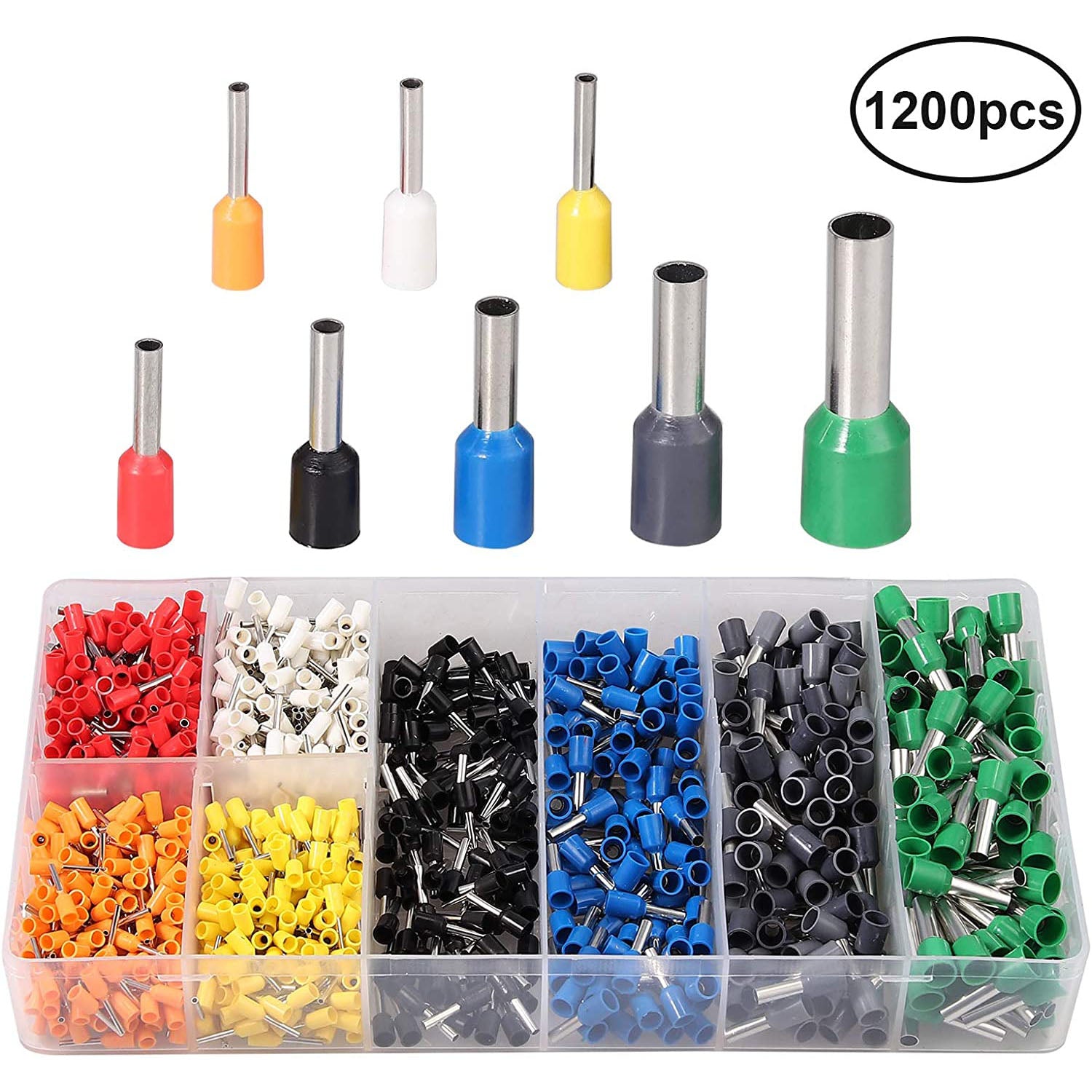

Ferrule Wire Terminals:
Green: E6012 AWG 10, 100pcs
Gray: E4009 AWG 12, 100pcs
Blue: E2508 AWG 14, 100pcs
Black: E1508 AWG 16, 100pcs
Red: E1008 AWG 18, 200pcs
White: E7508 AWG 20, 200pcs
Yellow: E0508 AWG 22, 200pcs
Orange: E0508 AWG 22, 200pcs

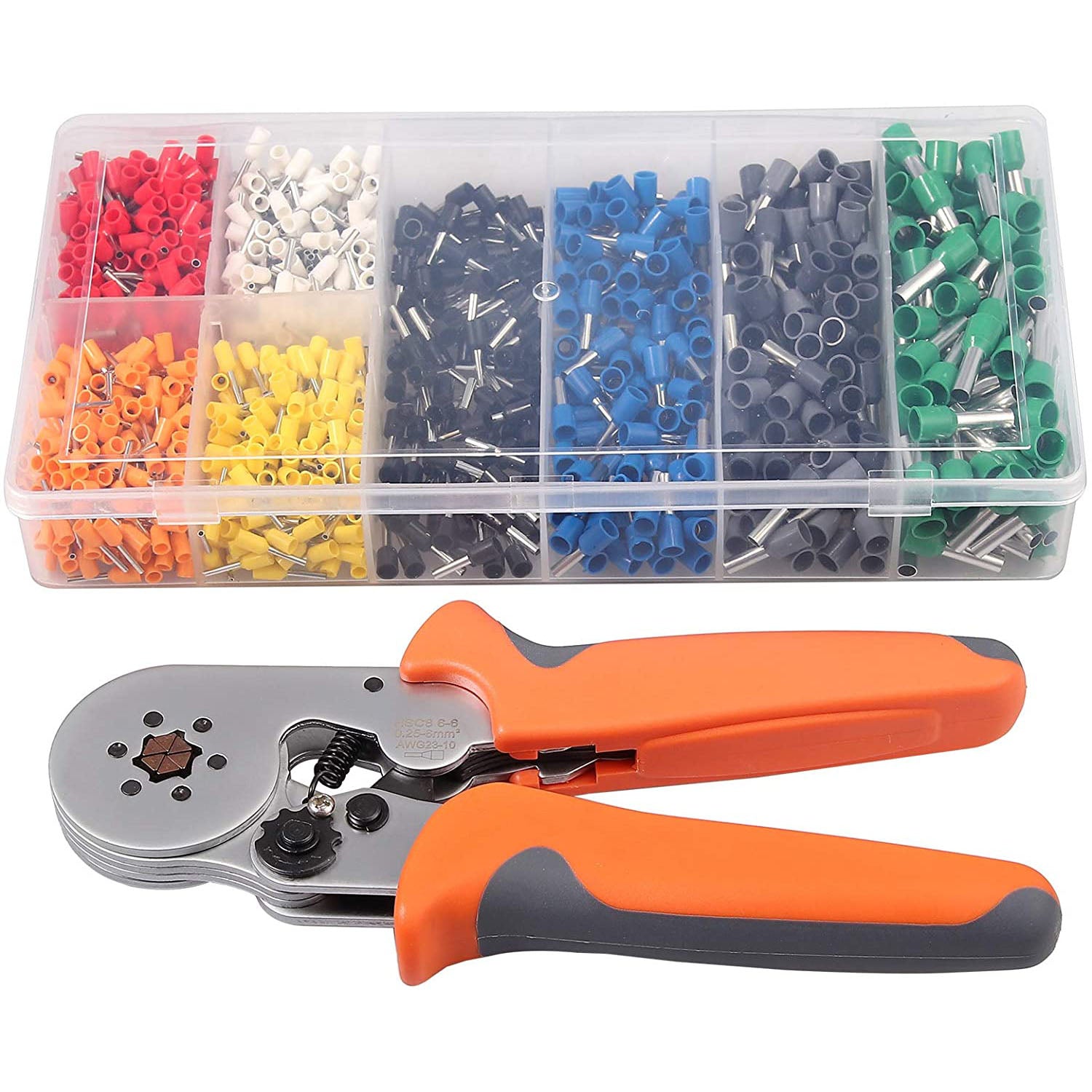

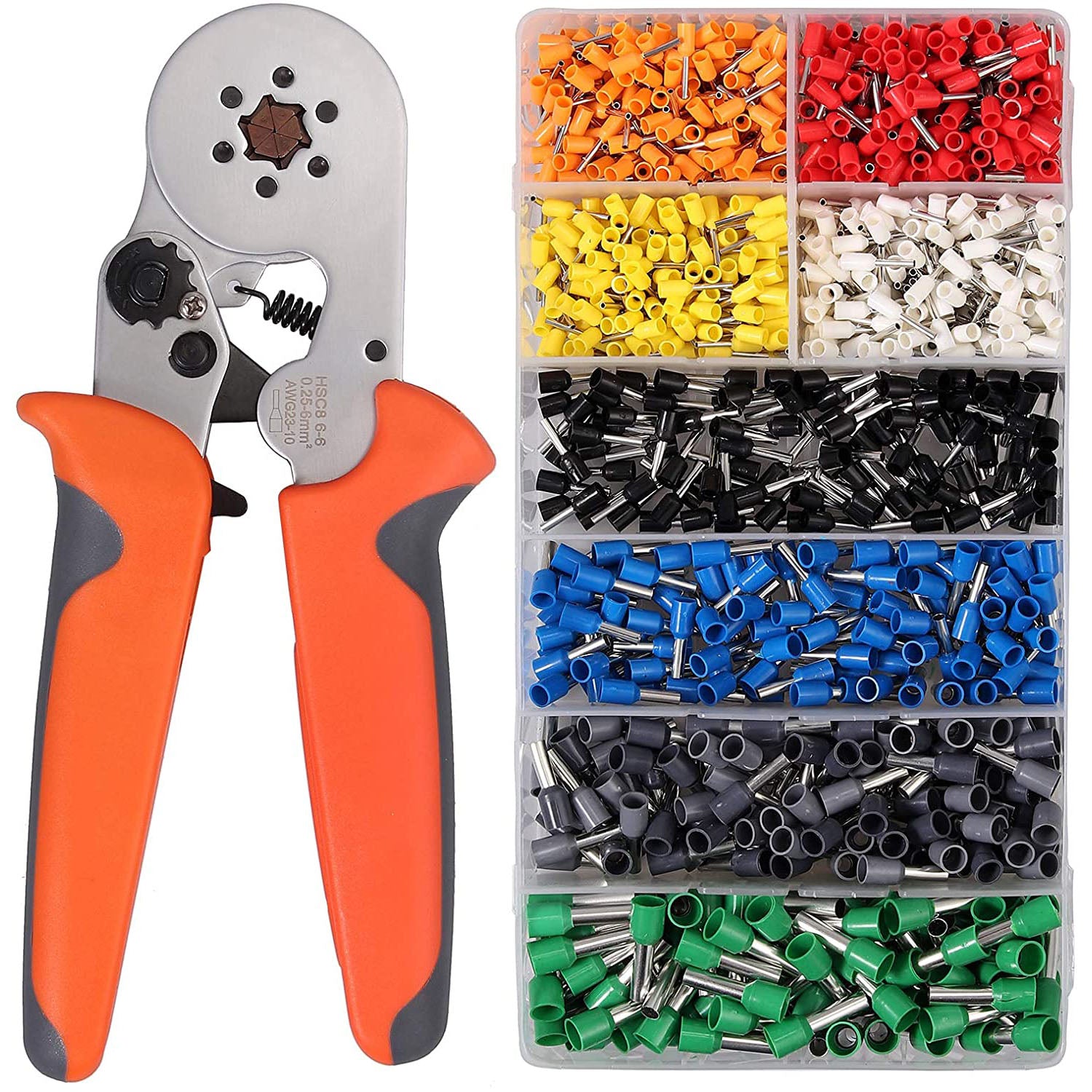

Package:
1 × 6-6 Ferrule Crimping Plier
1200 × Terminal Wire Connectors
